| PART |
Description |
Maker |
| 2021-25 |
25 W, 24 V, 2000-2130 MHz common base transistor
25 Watts, 24 Volts, Class C Microwave 2000 - 2130 MHz
BJT
2000-2400 MHz, Class C, Common Base; fO (MHz): 2100; P(out) (W): 25; P(in) (W): 5; Gain (dB): 7.5; Vcc (V): 24; Case Style: 55AW-1 S BAND, Si, NPN, RF POWER TRANSISTOR
|
GHz Technology
Microsemi, Corp.
|
| DB-55035S-175 DB-57060S-526 SD1274-01 DB-55015-165 |

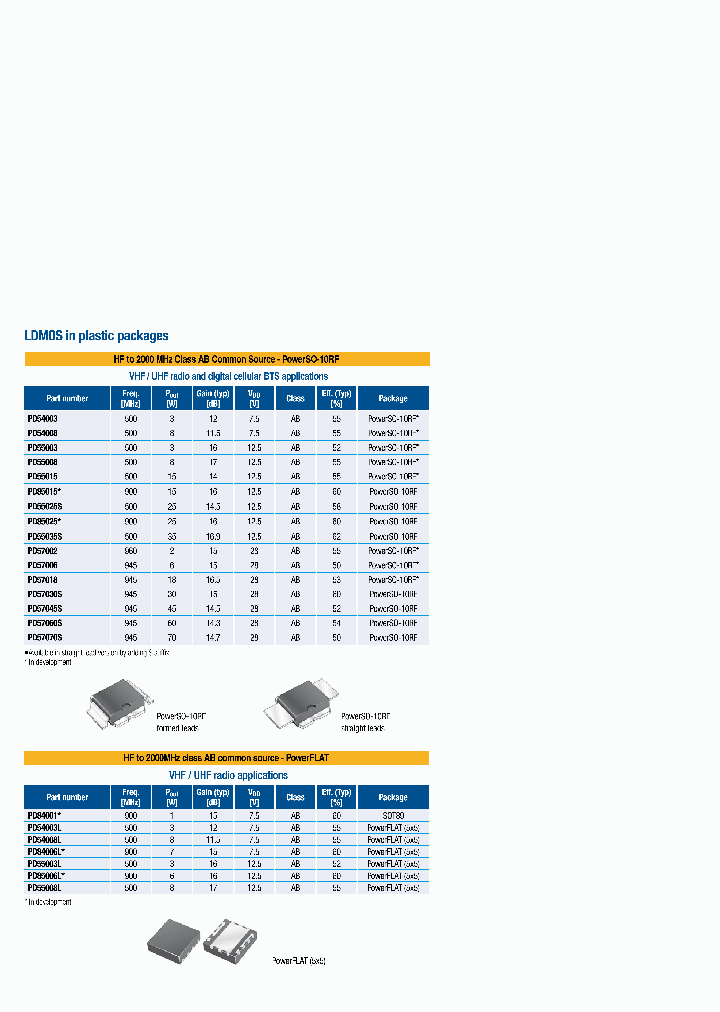

HF to 2000 MHz Class AB Common Source - PowerSO-10RF
|
ETC
List of Unclassifed Manufacturers
Electronic Theatre Controls, Inc.
http://
|
| 2301 |
2.3 GHz Class C, Common Base; fO (MHz): 0; P(out) (W): 1.5; P(in) (W): 0.24; Gain (dB): 8.5; Vcc (V): 20; Cob (pF): 4; Case Style: 55BT-1 S BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR
1.5 Watt - 20 Volts, Class C Microwave 2300 MHz
|
MICROSEMI POWER PRODUCTS GROUP
Microsemi, Corp.
GHZTECH[GHz Technology]
GHz Technology, Inc.
|
| UMIL60 |
60 Watts, 28 Volts, Class AB Defcom 225 - 400 MHz
UHF 225-400 MHz, Class C, Common Emitter; P(out) (W): 60; P(in) (W): 8; Gain (dB): 0; Vcc (V): 28; Cob (pF): 70; fO (MHz): 0; Case Style: 55HW-2 UHF BAND, Si, NPN, RF POWER TRANSISTOR
|
Microsemi Corporation
Vishay Semiconductors
|
| UTV005P |
UHF TV 470-860 MHz, Class A, Common Emitter; fO (MHz): 860; P(out) (W): 0.5; Gain (dB): 10; Vcc (V): 20; ICQ (A): 0.22; IMD Type (dB): -60; Case Style: 55FU-2 UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR
0.5 Watts, 20 Volts, Class A UHF Television - Band IV & V
|
Microsemi, Corp.
ADPOW[Advanced Power Technology]
|
| FLL600IQ-2 |
PUSH-PULL CONFIGURATION, BROAD FREQUENCY RANGE: 800 TO 2000 MHZ, SUITABLE FOR CLASS AB OPERATION
|
Fujitsu Component Limited.
|
| MS1582 |
UHF 860-960 MHz, Class A/AB, Common Emitter; fO (MHz): 0; P(out) (W): 25; Gain (dB): 9; Vcc (V): 25; ICQ (A): 3.2; IMD Type (dB): -45; Case Style: M173 UHF BAND, Si, NPN, RF POWER TRANSISTOR
|
Microsemi, Corp.
|
| MS3023 |
2.0 GHz, Class C, Common Base; fO (MHz): 0; P(out) (W): 3; P(in) (W): 0.5; Gain (dB): 7.8; Vcc (V): 28; Cob (pF): 9.5; Case Style: M210 L BAND, Si, NPN, RF POWER TRANSISTOR
|
Microsemi, Corp.
|
| 0405SC-1000M MICROSEMIPOWERPRODUCTSGROUP-0405SC-10 |
SiC UHF: 400-450MHz, Class AB, Common Gate-Pulsed; P(out) (W): 1000; P(in) (W): 180; Gain (dB): 8; Vcc (V): 125; Pulse Width (µsec): 300; Duty Cycle (%): 10; Case Style: 55KT FET-1 UHF BAND, Si, N-CHANNEL, RF POWER, JFET
1000Watts, 125 Volts, Class AB 406 to 450 MHz Silicon Carbide SIT
|
Microsemi, Corp.
Microsemi Corporation
|
| BTRM-50 |
Termination BNC 50ohm DC to 2000 MHz 0 MHz - 2000 MHz 50 ohm RF/MICROWAVE TERMINATION
|
Mini-Circuits
|
| PD2-2000/18000-30S PD2-1000/2000-30S PD2-2000/4000 |
2000 MHz - 18000 MHz RF/MICROWAVE SPLITTER, 0.8 dB INSERTION LOSS
1000 MHz - 2000 MHz RF/MICROWAVE SPLITTER, 0.25 dB INSERTION LOSS
2000 MHz - 4000 MHz RF/MICROWAVE SPLITTER, 0.3 dB INSERTION LOSS
2000 MHz - 8000 MHz RF/MICROWAVE SPLITTER, 0.4 dB INSERTION LOSS
|
MITEQ, Inc.
MITEQ INC
|
|
